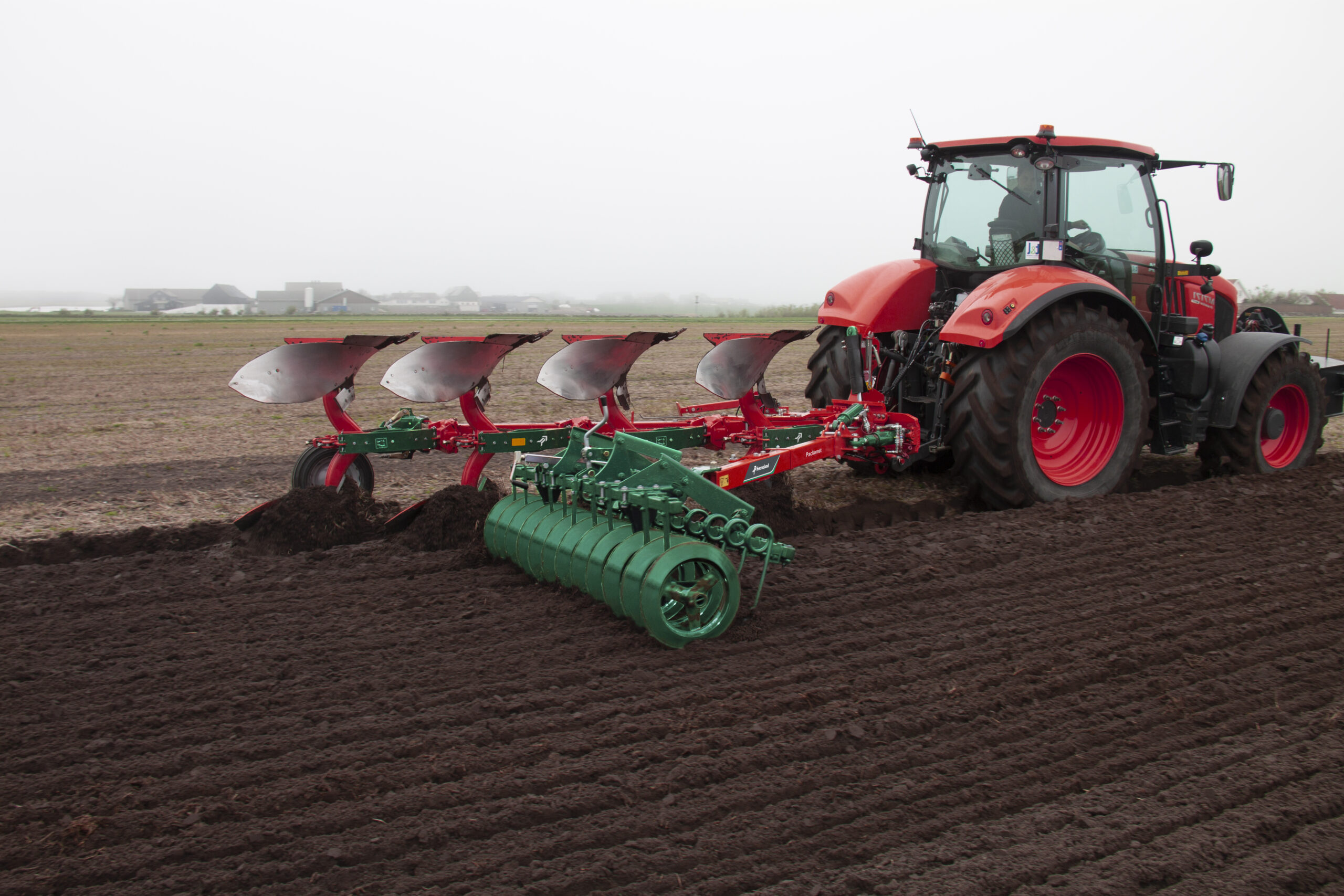

Kverneland ES Mounted Reversible Plough

  • Ploughing-loosing or mixing of soil
  • Turning of the soil to help with break down of organic material
Category:

Description

  • ES has 200 Hp head stock and is available from 3-5 furrow
  • Heat-treated single piece mainframe for optimum strength. 850 mm interbody clearance
  • First furrow close to tractor for easy lifting
  • Front furrow adjustment
  • Variwidth adjustable working width from 300-500 mm – “VARIOMAT®
  • On the move auto reset leaf spring system with a 1400 kg breakaway
  • Induction heat treated soft center mouldboards
  • Body 9 Standard Mouldboard (25 kW per mouldboard)
  • The shear and the point is separate from each other, therefore if the point gets worn only the point needs to be turned or replaced
  • ES is ready for Packomat®
  • Mechanical leaf spring: 1400 kg break away. Can increase to 1800 kg
  • Quality parts extremely hard surface and softer centre for flexibility

Specifications

Model ES
No. of Furrows 3
Clearance (mm) 700
Interbody Clearance (mm) 850
Working Width (mm) 300 – 500
Working Depth (mm) 280 – 350
kW requirement 60 – 75
